BAT Wing Rocket Drone Design Files V3 – MUCAV – 2025

Description

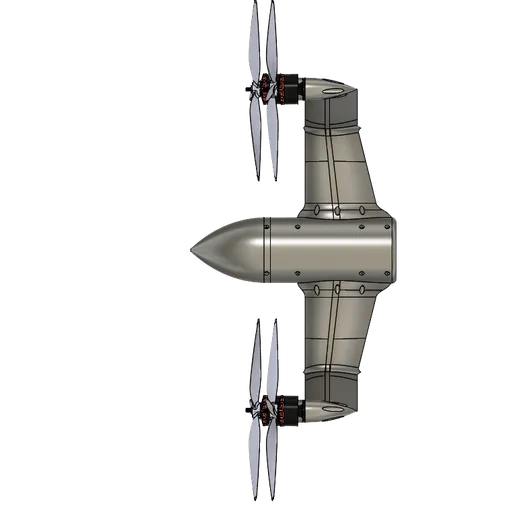

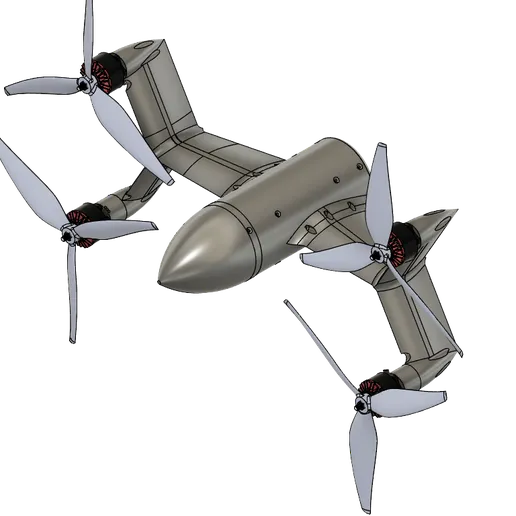

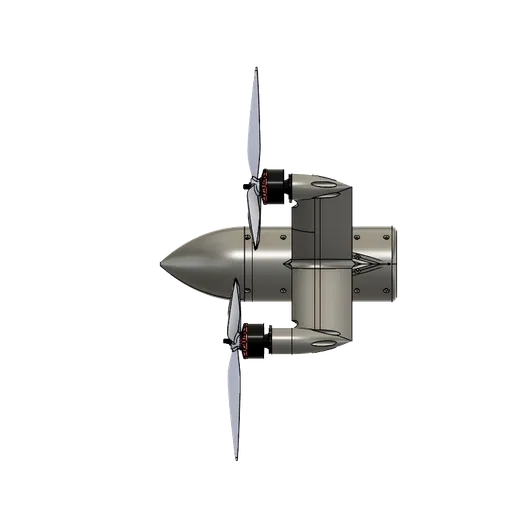

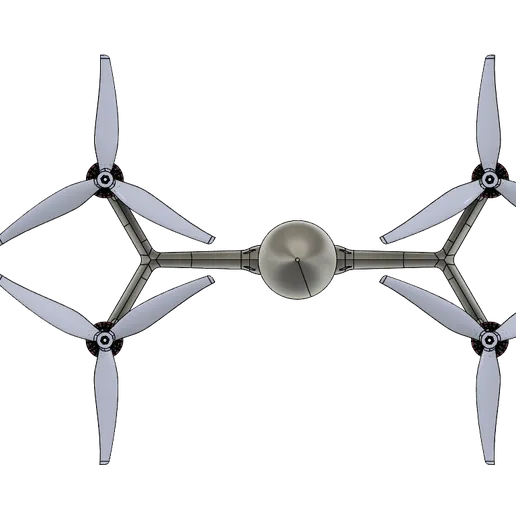

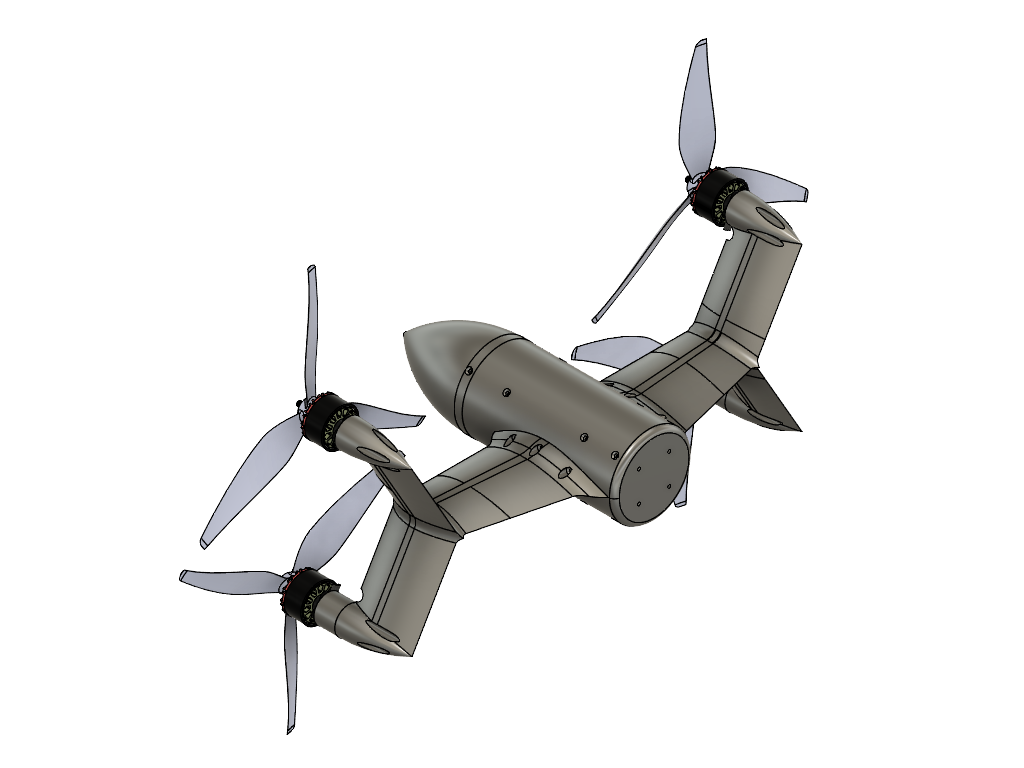

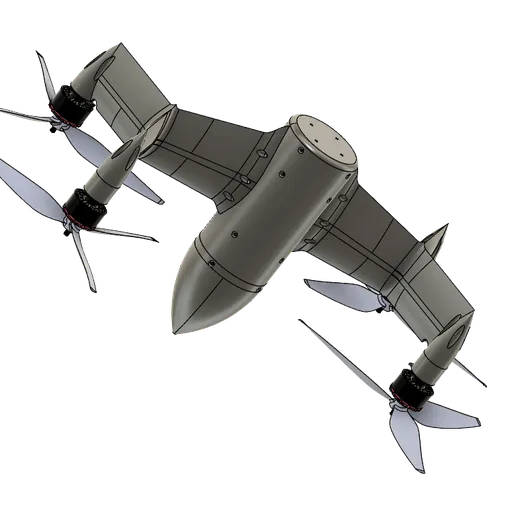

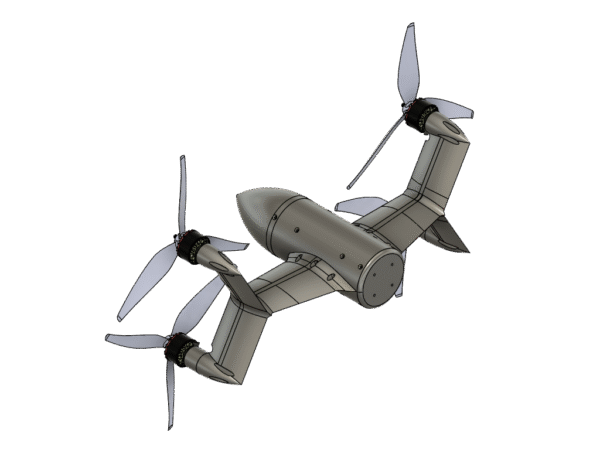

# Rocket Drone V3 – Advanced Multi-Rotor Aircraft

## Latest Updates (V3)
– **Enhanced Motor Mounting**: Redesigned motor mounting holes to 4x19mm for compatibility with new 3115 style motors
– **Improved Cable Management**: Widened cable channel openings for easier wiring
– **Structural Upgrades**: Added screw connections to dome assembly and motor spacers to main wings
– **Optimized Design**: Highly refined and ready-to-fly configuration

## Key Features

### Power System
– **Flexible Battery Options**: Compatible with LiFePO4 or 18650 Li-ion battery packs
– **Easy Battery Access**: Bottom-mounted battery compartment with quick-change capability
– **Future Wireless Charging**: Planned automatic wireless charging system for seamless ground operations
– **Dedicated Battery Holder**: Custom-designed holder accommodates multiple battery types

### Electronics & Control
– **Flight Controller Ready**: Designed for 30.5×30.5mm FC/ESC stack (SpeedyBee compatible)
– **Camera Integration**: Ample space for DJI or OpenIPC camera systems
– **Clean Wiring**: Organized cable routing throughout the frame

### Aerodynamics & Performance
– **High-Speed Design**: Optimized for high-velocity flight operations
– **Large Propeller Support**: Compatible with 10″ propellers using motor differential shift technology
– **Stable Landing Platform**: Flat bottom surface for easy autonomous landing
– **Optional High-Speed Configuration**: Funnel attachment available for maximum speed (hand-launch required)

### Modular Expandability
– **8-Motor Configuration**: Expandable to octocopter by adding wing modules
– **Heavy Lift Capability**: Multiple bodies can be connected in series for increased payload capacity
– **Modular Wing System**: Wings can be permanently attached for enhanced safety

### Construction
– **Print-in-Place Design**: No support material required
– **Recommended Material**: PETG with Gyroid infill
– **Easy Assembly**: Minimal post-processing needed

## Services Available
– **Custom Modifications**: Design adjustments available upon request
– **Pre-Printed Options**: Professionally printed versions available for shipping
– **Technical Support**: Free consultation and questions welcomed

## Applications
– High-speed aerial photography/videography
– Long-range surveillance
– Heavy payload transport
– Research and development platform
– Racing and aerobatic flight

## What You Get
– Complete frame design files
– Battery holder design
– Assembly instructions
– Recommended components list
– Ongoing design support

—

*Contact me for custom modifications, technical questions, or to order a pre-printed version. This design represents the latest evolution in high-performance drone technology.*
